HT431P SecureTurn Portable Full Height Turnstile

Portable and Affordable Full Height Turnstile

The SecureTurn HT431P Portable Full Height Turnstile is the perfect marriage of convenience and cost savings. You get one of the most popular American-made turnstiles (our HT431 SecureTurn) mounted directly on a forklift-ready baseplate.

This portable turnstile was purpose-built to rival those expensive and bulky portable solutions currently on the market. No longer will you need a crane or a whole team just to move your turnstile. Now, you can relocate your turnstile at a moment’s notice with nothing but a forklift.

What Are the Benefits of the HT431P?

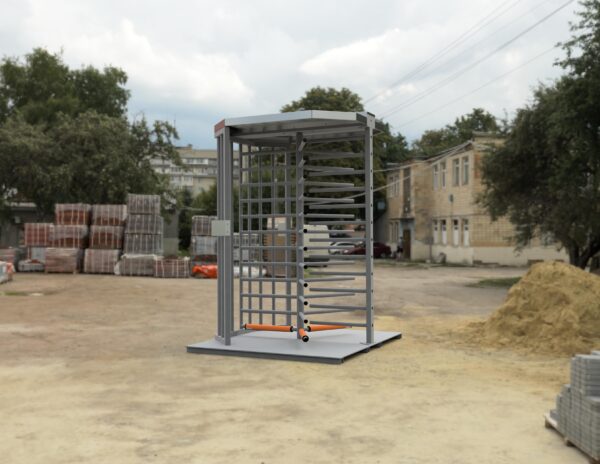

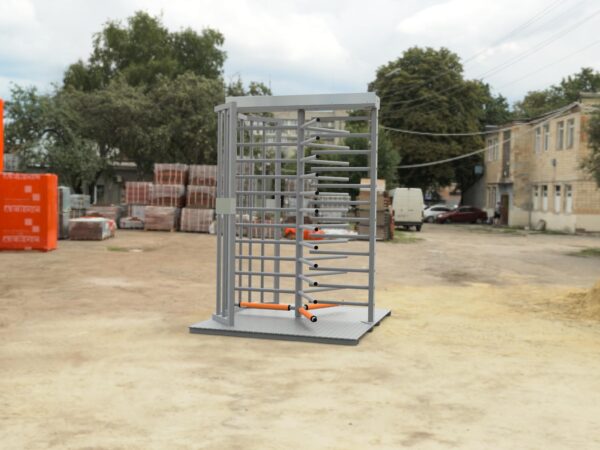

The HT431P is one of the best construction site turnstile solutions because it can be easily moved to a new location on site in reaction to a construction site’s ever-changing shape and security needs. Beyond this, there are many construction sites where it simply is not cost-effective or possible to pour a concrete pad for anchoring a turnstile in place. These sites are prime candidates for a “no mounting” solution like our portable turnstiles.

Our HT431P includes only the features you need, omitting unnecessary options and add-ons. Our streamlined design eliminates extraneous features like shipping containers, ramps, and overengineered/bulky designs, allowing you access to portable and movable turnstiles at a fraction of the cost offered by the competition.

We even offer preassembly for our HT431P, so you can enjoy the convenience of having a fully assembled and functional portable security solution delivered right to your job site. No assembly is required — use your forklift to easily position the preassembled turnstile in place, hook up your power, and begin using it.

Here are a few main features that make our portable turnstiles stand out:

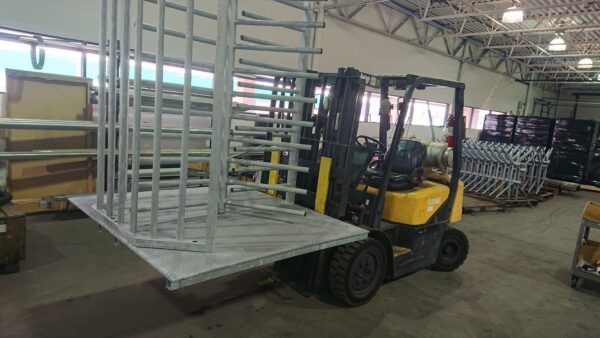

  • Conveniently movable with a forklift or pallet jack
  • Four-way fork slots so you can pick the turnstile up from any side
  • Ships preassembled from our factory
  • Stocked in large quantities, ready to ship to your site often within 1 week or less
  • Streamlined construction for massive cost savings
  • ARC (Automatic Rotational Control) mechanism onboard, ensuring durability and safety in hard-use construction environments
  • Modular design where lanes can be added or removed at a moment’s notice
  • Proudly made in the USA
  • FREE Safety Sleeves with each turnstile



HT431P Portable Full Height Turnstile PDF Downloads

category HT431P Portable Turnstile Brochure

specification-new HT431P Portable Full Height Turnstile Dimensions

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!



Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our access control experts are happy to coordinate installation with one (or multiple) of our certified installers, who will handle the purchase, installation, and integration of turnstiles and gates for you. Contact Us to Begin Your Project!



Why Hayward Turnstiles Is Your Superior Choice

One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

When you choose Hayward Turnstiles, you are choosing to work with a dedicated partner who goes above and beyond what it means to be a turnstile manufacturer. Our access control experts put in the extra effort with custom layout drawings, design consultations, and more to help you transform your security aspirations into reality.

As a 100% independent, family-owned turnstile manufacturer, we’re always here when you need support. With rapid email responses, same-day quotes, and personalized service, working with Hayward means experiencing the commitment and care that you can only find from an independent family business.

Call Us About Portable Turnstiles

Choose Hayward Turnstiles to secure your construction site, easily monitor worker attendance, and streamline access control. With the quickest response time in the industry and preassembled portable turnstiles in stock, working with Hayward is your quickest path to job site security.

Contact us to secure your construction site today.

Applications

Applications

Our HT431P Portable Full Height Turnstile is purpose-built for any situation where a full height turnstile is needed, but it is not practical, preferable, or possible to mount the turnstile directly into a concrete pad. This portable option is also great for situations where you must move the turnstile frequently throughout its lifetime to react to shifting traffic flows or evolving site layouts.

More specifically, our HT431P is the number one choice for construction site access control because it is affordable, durable, and can be shipped directly to your job site preassembled and ready to be dropped in place and used immediately.

Construction companies pair our HT431P with access control software to keep track of employees, monitor time in and time out, and ensure only authorized individuals can gain entry to the construction site.

Don’t have a worksite software platform? Hayward partners with every top construction site software provider. We are happy to introduce you to one or many of our software partners.

Along with construction sites, our temporary turnstile solutions help enhance security and crowd control at:

  • Amusement parks
  • Emergency response centers
  • Temporary exhibitions
  • Outdoor events

Reach out today to learn how you can use portable turnstiles to secure areas and control traffic flow in dynamic, ever-changing environments.



Materials and finishes available in:

  • Hot-dip galvanized steel (our “standard” that we keep in stock while supplies last)
  • Powder coated steel
  • Powder coat over galvanized steel



Nonportable Full Height Turnstiles That We Offer:

SecureTurn HT431 Standard Passage 31″

SecureTurn HT439 Wide Passage 39″

SecureTurn HT448 Extra Wide Passage 48″



Padded Safety Sleeves help prevent accidents and enhance turnstile usability (optional):

Protects against injuries – Reduces bruising – Stops heel slams

Softens impacts – Easy-grab cushion grip

Cool to the touch in heat – Insulates bars in cold

Specs

Finish

Galvanized, Powder Coated, Powder Coat over Galvanize

Passage Width

Standard 31"

Overall Width

64"

Safety Sleeves

Free Heel Pack (3 Sleeves)

Electronic Entry/Exit

Optional

Reader Mounting Plates

Optional

Key Override

Optional

Status Indicator Lights

Optional

Mounting Surface

Portable: simply place the turnstile anywhere there is level, sturdy ground

Details

HT431P Portable Full Height Turnstile Details

Here’s an overview of our HT431P’s standard features and specs.

Product Features:

Materials and finishes in your choice of:

  • Hot-dip galvanized steel
  • Powder coated
  • Powder coat over galvanized



Design and Construction:

  • Turnstile mounted on a robust portable baseplate, enabling you to pick your turnstile up with a forklift or pallet jack
  • Designed for high-security operations with minimally exposed hardware
  • Built tough right here in our Connecticut, USA, manufacturing facility for lasting performance
  • Featuring fully welded exterior components



Turnstile Operation:

  • Self-centering mechanism with hydraulic shock suppression
  • Permanently lubricated bearings
  • Clockwise, counterclockwise, or bidirectional passage
  • Portable and able to be moved to a new location with a forklift or pallet jack



Electrical Specifications:

Power supply input 100-240VAC (.7 amp) 50/60hz output
24VDC (1.1 amp) All components UL recognized

Warranty:

Units are warranted against defects in materials and workmanship for one year from the ship date. See warranty information for specific details.

Options

HT431P Portable Full Height Turnstile  Options

Further customize your HT431P to fit your project’s unique requirements. Here are some of our most common options:

Options:

  • Factory preassembly
  • Electronic locking module featuring heavy-duty 24 VDC solenoids that can integrate with virtually all access control software and hardware via a momentary dry contact
  • Choice of fail safe (unlock on power loss) or fail secure (lock on power loss) for electric units only
  • Card reader mounting plates (electric units only)
  • Anti-climb canopy
  • Key override for electric or manual units (both directions)
  • Red/green daylight-visible indicator lights (electric units only)
  • Safety Sleeves (Orange, Gray, or Black)
  • Heavy-duty lock bar (includes HD padlock)
  • Additional options available upon request

Dimensions

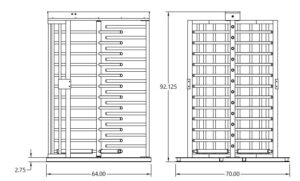

HT431P Portable Full Height Turnstile Dimensions

Space is a limited commodity on construction sites. Explore our detailed dimensional diagrams to see how our HT431P delivers big performance in a small package.

specification-new  HT431P Portable Full Height Turnstile Dimensions

PDF

HT431P Portable Full Height Turnstile  PDF Downloads

category HT431P Portable Turnstile Brochure

specification-new HT431P Portable Full Height Turnstile Dimensions

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.

Prices

Contact us today for portable turnstile pricing. Reach out today to receive:

  • Comprehensive pricing
  • Design assistance
  • Layout drawings
  • Specs and dimensions

Though price is important, we understand your turnstile project is more than just a dollar value on a chart. That’s why we are committed to providing expert guidance and design assistance every step of the way, ensuring you receive the best turnstile solution available.



    Here's what you will get:

    • Quoted Price
    • Specs & Dimensions
    • Design Assistance
    • Layout Drawings
