HT431T SecureTurn Full Height Tandem Turnstile

a stainless steel full height turnstile with orange padded safety sleeves
1 tandem full height turnstile and 2 full height ADA gates in a hallway at JFK international airport
a row of full height turnstiles are lined up outside of a building

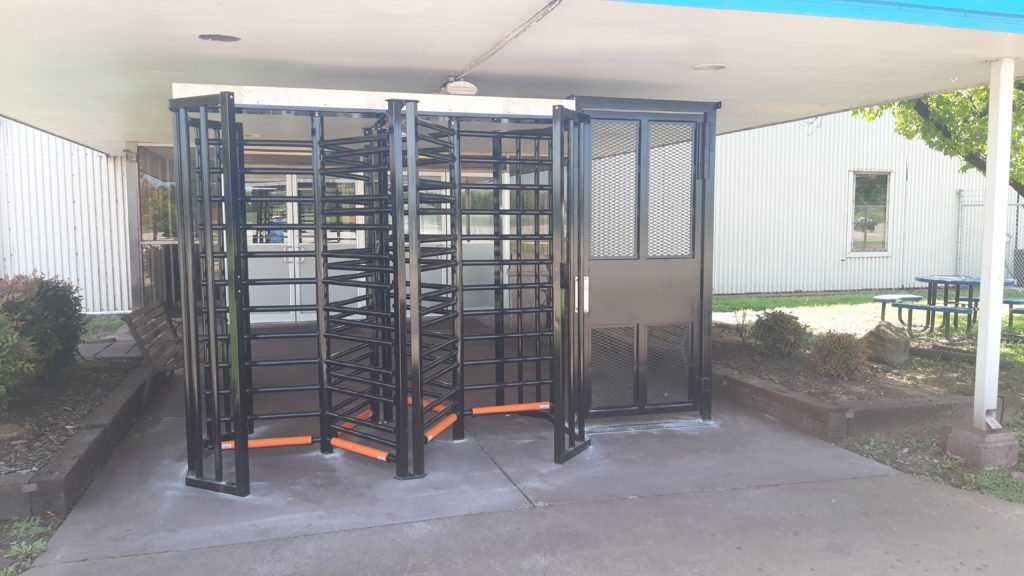

full height tandem turnstile installed outdoors with a climb over canopy at the top
full height tandem turnstile installed outdoors with a climb over half canopy at the top
full height turnstiles and full height gates installed in a two-tone black and yellow powder coat colorway

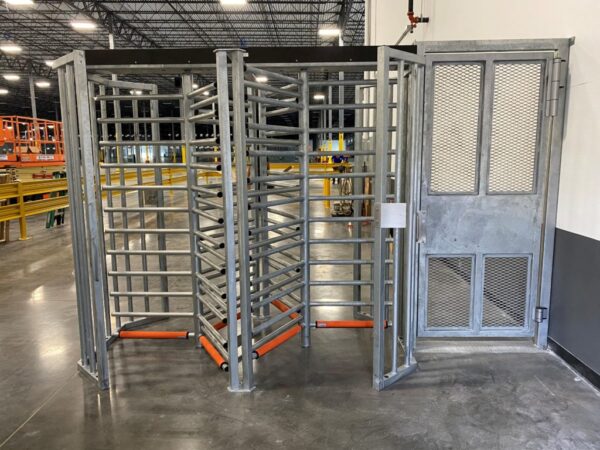

tandem full height HT431T turnstiles installed with HTG-M full height ADA gate next to them in a custom two-tone blue and yellow powder coat finish
a warehouse with a full height turnstile with orange padded safety sleeves
a stainless steel full height turnstile with orange padded safety sleeves
1 tandem full height turnstile and 2 full height ADA gates in a hallway at JFK international airport
a row of full height turnstiles are lined up outside of a building
full height tandem turnstile installed outdoors with a climb over canopy at the top
full height tandem turnstile installed outdoors with a climb over half canopy at the top
full height turnstiles and full height gates installed in a two-tone black and yellow powder coat colorway
tandem full height HT431T turnstiles installed with HTG-M full height ADA gate next to them in a custom two-tone blue and yellow powder coat finish
a warehouse with a full height turnstile with orange padded safety sleeves

USA Made, Affordable Tandem Full Height Turnstile

The SecureTurn HT431T tandem full height turnstile is our most popular tandem full height turnstile because it is extremely dependable, easy to install, and made right here in our USA-based manufacturing facility. The HT431T features tamper-proof construction and floor to ceiling security. This full height turnstile easily integrates with virtually any access control hardware or software via a momentary dry contact, making it the perfect access control solution for any application.

Product Benefits

  • Tandem width saves space
  • Full height for maximum security
  • Self-centering mechanism
  • Strong and durable- Made in the USA
  • Built tough to last a lifetime
  • 6 FREE Safety Sleeves

HT431T SecureTurn Full Height Tandem Turnstile PDF Downloads

category HT431T Tandem Full Height Turnstile Brochure

specification-new HT431T Full Height Tandem Turnstile Architectural Specifications



Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!

Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Categories: , , , , , , , , , , , , , , , , , ,

Applications

Applications:

The SecureTurn HT431T is the perfect access control choice for when you are looking for maximum security levels and two lanes of traffic per turnstile. Our HT431T offers two lanes of traffic flow in one space-saving design, allowing you to install one HT431T instead of two single full height turnstiles. The HT431T is often paired with our matching HTG-M full height gate to provide a comprehensive, ADA-compliant entry solution. Construction sites, factories, fulfillment warehouses, detention centers, public transportation, government/military facilities, and more all benefit from the added perimeter security and access control offered by an HT431T full height turnstile. Indoors or outdoors, the HT431T full height turnstile is perfect for any high security or access control application.

Materials and finishes available in:

  • Hot Dip Galvanized Steel
  • Powder Coated Steel
  • 304 Stainless Steel

Single passage models in this series:

SecureTurn HT431 Standard Pasage 31″

SecureTurn HT439 Wide Passage 39″

SecureTurn HT448 Extra Wide Passage 48″



Specs

Finish

Galvanized, Powder Coat, Stainless
Passage Width

Standard: 2 Lanes
Overall Width

96"
Safety Sleeves

Free Heel Pack (6 Sleeves)
Electronic Entry/Exit

Optional
Reader Mounting Plates

Optional
Electronic Counter

Optional
Key Override

Optional
Status Indicator Lights

Optional
Matching ADA Gate

HTG-M
Mounting Surface (level)

Concrete Recommended

Details

HT431T SecureTurn Full Height Tandem Turnstile Details

Product Features:

Materials and finishes in your choice of:

  • Hot dipped galvanized steel
  • Powder Coated Steel
  • 304 Stainless Steel

Design & Construction:

  • Designed for secure operations with aesthetics in mind
  • Choice of right or left handed direction
  • Fully welded exterior components
  • Heavy-duty lifetime construction

Turnstile Operation:

  • Self-centering mechanism with hydraulic shock suppression
  • Permanently lubricated bearings
  • Clockwise, counter clockwise, or bidirectional passage

Electrical Specifications:

Power supply input 100-240VAC (.7 amp) 50/60hz output 24VDC (1.1 amp) All components UL recognized

Warranty:

Units are warranted against defects in materials and workmanship for a period of one year from date of
delivery. See warranty information for specific details.

Options

HT431T SecureTurn Full Height Tandem Turnstile Options

Options:

  • Electronic locking module featuring heavy-duty 24 VDC
    solenoids that can integrate with virtually all access control software and hardware via a momentary dry contact
  • Choice of fail safe (unlock on power loss) or fail secure (lock
    on power loss) for electric units only
  • Card reader mounting plates (electric units only)
  • Key override for electric or manual units (both directions)
  • Red/Green indicator lights (electric units only)
  • Safety Sleeves (Safety Orange or Steel Gray)
  • Full and half canopies
  • Home position switches
  • Heavy-duty lock bar (includes HD padlock)
  • Additional options available upon request

Dimensions

HT431T SecureTurn Full Height Tandem Turnstile Dimensions

category HT431T Tandem Full Height Turnstile Complete Dimensions

PDF

HT431T SecureTurn Full Height Tandem Turnstile PDF Downloads

category HT431T Tandem Full Height Turnstile Brochure

specification-new HT431T Full Height Tandem Turnstile Architectural Specifications

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product
