Barrier Free Optical Turnstile with Fast Throughput

Space Saving Optical Turnstile with Fast Throughput

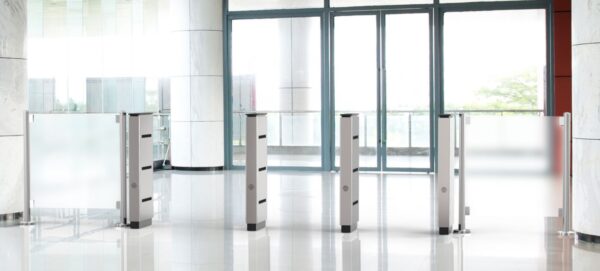

The CP3000 is our barrier-free optical turnstile with a slim cabinet profile. This barrier-free optical turnstile combines technological advancement with aesthetical refinement. With no physical barrier and unparalleled optical technology, the CP3000 ensures fast throughput while simultaneously detecting and alarming when unauthorized entry occurs. This compact and modern counting turnstile is a TCP/IP enabled device, allowing it to instantly communicate data with other networked devices. The CP3000 can even be integrated via a momentary dry contact for simple and direct integration. The CP3000’s included browser-based configuration software transforms any networked device with access to a web browser (PC, smartphone, tablet, laptop) into a remote lane configurator. Instead of plugging into individual turnstile lanes, simply use your personal device to install software updates and access your CP3000’s core settings. Step up your operations and monitoring with our optional LaneAdmin browser-based software. LaneAdmin integrates remotely with any networked CP3000, instantly providing a virtual desktop view so your attendants or security team can perform operational functions such as processing one-time passages and changing operational directions.

ClearPass CP3000 Barrier-Free Optical Turnstile:

Touchless entry solution

Narrow profile stainless steel cabinet with optional ADA compliant lane widths

Simple installation and integration with dedicated inputs and outputs

Included browser-based lane configuration software

Optional Remote Monitoring and Scheduling Application

Audio and Visual alarm conditions

Ships assembled and ready for installation

ClearPass CP3000 PDF Downloads:

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!

Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Applications

Applications:

The ClearPass CP3000 is a barrier-free optical turnstile used for credential checking, piggyback detection, and entrance security. This optical turnstile is perfect for entrances that require credential checking but need very fast throughput. Since the CP3000 lacks a physical barrier, it is also great for when access control is needed, but an open feel must be maintained. Government facilities, university buildings, high-end office lobbies, and much more all benefit from the inviting yet sophisticated CP3000 barrier-free optical turnstile.

Specs

Price Range	Affordably Priced
Security Type	Barrier-Free (alarm conditions warn of unauthorized entry)
Passage Width	Standard Lane: 28" or 711.20mm ADA Compliant Wide Lane: 36" or 914.40mm (Additional widths available upon request)
Housing Dimensions	38.8" H x 17" L x 4" W 985mm x 432mm x 102mm
Housing Material	#304 Stainless Steel with #4 Satin Finish
Entry/Exit Control	Yes: with integrated access control or manually with remote lane controller
Bi-directional	Yes
Visible/Audible Alerts	Yes
Tailgate/Crawl Detect	Yes
Floor Mount Platform	Optional
Remote Lane Control	Browser-Based Remote Lane Control Software (optional)
Power Requirements	Input: 110-120 VAC, 60 Hz or 220-240 VAC 50 Hz (Optional) Output: Primary power is stepped down and rectified for low voltage 24 VDC, 12 VDC, and 5 VDC operation.

Details

ClearPass CP3000 Standard Features

Optical Detection:

Integrated optical sensors for high accuracy detection of pedestrians.

Throughput Capacity:

Up to 60 passages per minute for fast user throughput.

Premium Cabinet Construction:

Cabinets are fabricated from #304 stainless steel polished to a #4 satin finish with a Livingstone solid surface lid.

Audible Alerts:

Audible alarms alert of passage in the wrong direction or unauthorized access.

Bi-Directional Access

Can be set up for single or bi-directional access control.

Easy Lane Configuration:

• Browser-based lane configuration from any networked device
• Onboard Ethernet port for direct access to lane configuration

Easy Installation:

Each CP3000 ships fully assembled for easy installation on site. The CP3000 can be used indoors or for select outdoor installations.

Quality Control:

Every unit is inspected, tested, and certified before shipment.

Options

ClearPass CP3000 ADDITIONAL OPTIONS

LaneAdmin Browser-Based Counting Software:

• Remotely control your turnstile lanes as traffic flows shift
• Perform diagnostic checks, analyze alarms, display patron counts

Lane Mounting Platform (for above floor wiring):

Cabinet is mounted on pedestal base to minimize drilling into floor.

Alternate Lid Colors and Materials:

Lids provided in your choice of any available solid surface color.

Alternate Cabinet Colors and Materials:

Powder coated and plated cabinets available in a multitude of colors.

Alternate Power Supply

A 220-240 VAC, 50 Hz power supply is available

Longer interconnection Cables:

Longer cables available to accommodate installations where standard conduit runs are not available.

Turnstile Key Controls:

3-position key switching installed on turnstile to switch between controlled passage, free passage, and no passage modes

Dimensions

ClearPass CP3000 DIMENSIONS

Please contact us for multi-lane dimensions and custom lane widths.

PDF

ClearPass CP3000 PDF Downloads

category ClearPass CP3000 Optical Turnstile Brochure

category LaneAdmin Remote Lane Control Brochure

category ClearPass CP3000 Architectural Specifications

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.

ClearPass CP3000 Barrier-Free Optical Turnstile
