HT348/HT348M Extended Width Full Height ADA Gates

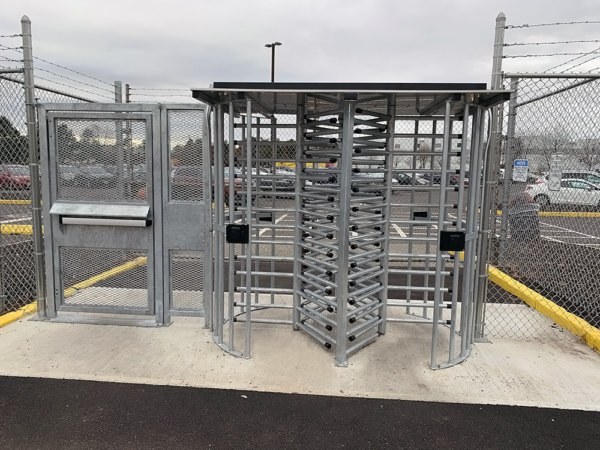

The HT348 and HT348M are our flagship extra-wide full height ADA gates with an extended passage width of 48″. Our HT348 full height gates provide the same floor to ceiling level of security coverage as our full height turnstiles while simultaneously providing an ADA compliant clear opening for disabled entrants. Our HT348 full height gates are available with vertical bars as barriers (HT348) and can even be outfitted with additional mesh infill (HT348M) for advanced reach through protection. The HT348 works great as a standalone access control solution, but it really shines when paired with one of our SecureTurn series full height turnstiles to provide a comprehensive access control solution. All Hayward Turnstiles full height ADA gates are designed for handicap access but are often used as an alternate entrance for when people must enter with pushcarts, deliveries, strollers, tools, and any other object that would not easily fit through a regular full height turnstile.

Product Benefits

  • Matches SecureTurn Full Height Turnstiles
  • Extended ADA compliant lane width of 48 inches
  • Integrates with virtually all access control software and hardware via a momentary dry contact
  • HT348M product available with mesh infill for reach through prevention (can be outfitted with a panic bar for emergency exit purposes)

HT348/HT348M Full Height Gates PDF Downloads

category HT348 Full Height ADA Compliant Gate Brochure

category HT348M (Mesh) Full Height ADA Gate Architectural Specifications

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!



Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Categories: , , , , , , , , , , , , , ,

Applications

Applications:

Full height ADA handicap gates provide maximum security and
access control for handicap accessible entry and/or exit. The
SwingGate HT348 and HT348M offer an extended ADA compliant lane width of 48″.

They can easily be configured to different levels of functionality and are
designed to be paired with our full height turnstiles. They can
also be used as stand-alone units and can easily integrate with
existing access control systems.

Materials and finishes available in:

  • Hot Dip Galvanized Steel
  • Powder Coated Steel
  • 304 Stainless Steel

Matching SecureTurn Full Height turnstiles in this series:

SecureTurn HT431 Standard Passage 31″

SecureTurn HT440 Standard Passage 31″

SecureTurn HT439 Wide Passage 39″

SecureTurn HT448 Extra Wide Passage 48″

SecureTurn HT431T Tandem for double passage

Specs

Price Range

Competitively Priced
Finish

Galvanized, Powder Coat, Stainless
Width

Extended 48" Lane Width
Mesh Infill

Included with HT336M
Panic Bar

Optional (HT336M Only)
Hydraulic Closer

Included (Locinox Mammoth 180)
Manual Key

Included (Adams Rite 4510 Series with 31/32" backset)
Electronic Entry/Exit

Included (Adams Rite 7100 Series 24VDC)
Electronic Push Button

Optional
Reader Mount Plates

Optional
Mounting Surface (level)

Concrete or Ground

Details

HT348/HT348M Full Height Gates Details

Product Finish:

Available in all of our standard finishes (stainless, powder
coated, or galvanized) to match our turnstiles.

Design & Construction:

  • Designed as an ADA compliant solution for perimeter security
  • 48″ extended passage width
  • Fully welded exterior components
  • Built from heavy-gauge materials that meet ASTM standards
  • Choice of standard vertical bars or reach prevention mesh
  • Minimally exposed, tamper proof hardware

Gate Operation:

  • Gate automatically closes with included hydraulic door closer
  • Field reversible electronic strike lock (24VDC) included
  • Strike lock can be used mechanically or electronically

Electrical Specifications:

UL Approved Electronic Strike: Input Voltage: 24VDC Input Current: 170 mA

Warranty:

Units are warranted against defects in materials and workmanship for one year.

Options

HT348/HT348M Full Height Gates Options

Options:

  • Heavy gauge tight weave mesh (HT348M)
  • Push operated panic bar for free exit situations (only available
    with the HT348M)
  • Magnetic lock (replaces included strike)
  • Motorized gate opener (requires 110VAC)
  • Push buttons (wired or wireless)
  • Customizable passage widths
  • Additional options available upon request

Dimensions

HT348/HT348M Full Height Gates Dimensions

PDF

HT348/HT348M Full Height Gates PDF Downloads

category HT348 Full Height ADA Gate Brochure

category HT348M (Mesh) Full Height ADA Gate Architectural Specifications

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.
